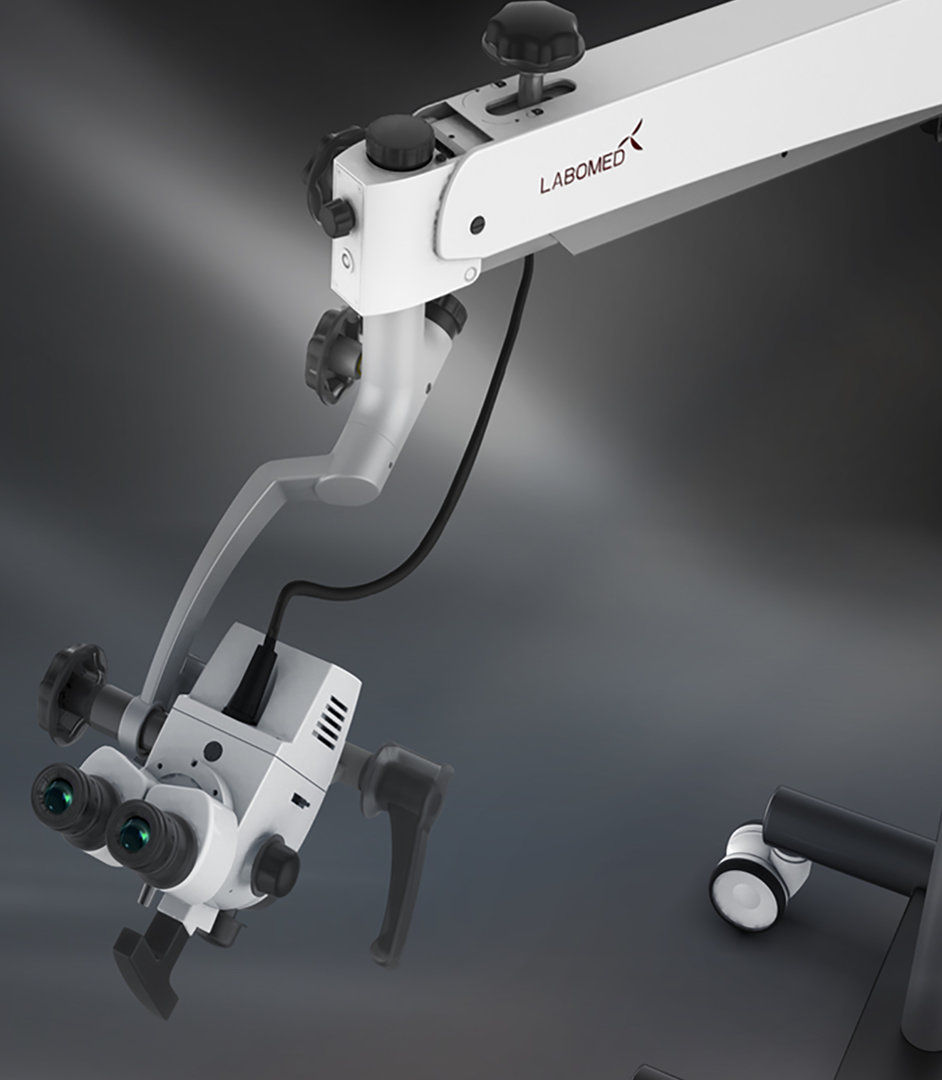

LABOMED PRIMA MU ENT OUTPATIENT MICROSCOPE

PRIMA MU ENT:

​

The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system's centre of gravity to provide a more stable, lighter weight solution.

​

MICROSCOPE SPECIFICATIONS:

• Prima Mu ENT microscope with an intelligent LED illumination system

• Mounting system: heavyweight H-shape base on lockable castor wheels, swivel arm mounted on a pillar

• Suspension arm: 980 mm

• Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x

• Viewing bodies: binocular tubes 90º tiltable, IPD range 55-75 mm, f=170 mm

• Objective: lens f=250 mm with a manual fine focus control knob

• Eyepieces: WF adjustable eyepiece 10x/FN 18 mm with eye guards

• Observation head: ergonomic T-handle for observation head

• Microscope carriers: straight down mounted but also delivered with 155º carrier

• Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux

• Input: AC 115-240V, 50/60Hz

• Filter: green filter with a filter holder

• Vertical movement of arm: 600 mm

• Fuse: quick-acting fuse 1.0 Amp

• Standard accessories: dust cover for microscope observation head and illumination box

​​

Available in ceiling, high wall, wall, fixed floor, table

and mobile mount
